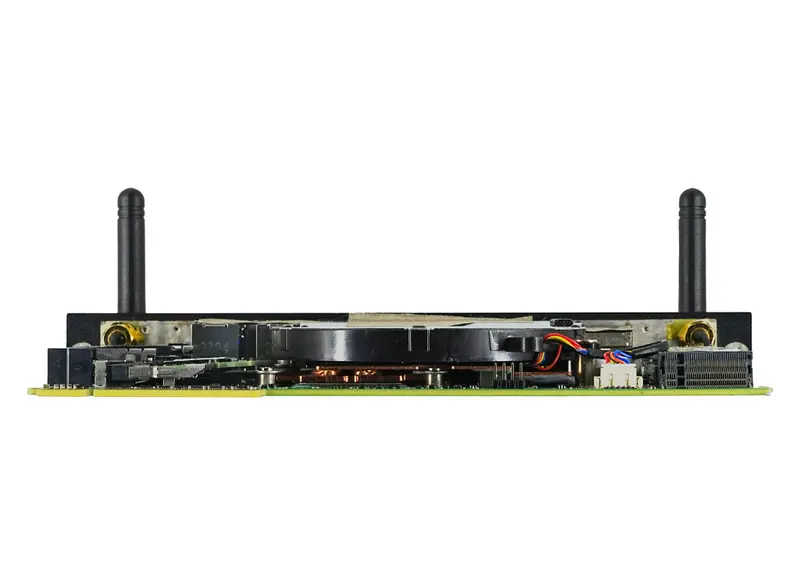

• iiyama Mini Slot-In PC Intel i3 SDM-L with Windows 11

  This mini SDM-L PC with an Intel® Core™ i3 processor turns your iiyama large format display from the ProLite LH54 Series and LH75 Series (50″ and larger) into a stand-alone solution. It comes equipped with a powerful Intel® processor, integrated Ultra HD graphics, and a fast SSD. It features 4 USB3.2 Gen1 ports and 2 Type-C ports (USB3.2 + DP ALT).

• Category	Specification
  Type	SDM-L Slot PC
  CPU	Intel® i3-1220P
  RAM	8GB DDR4
  SSD	256GB M.2
  Graphics	Intel® UHD Graphics for 12th Gen Processors
  Chipset	Intel®
  Sound card	Integrated High Definition Audio
  Network	10/100/1000M Adapter
  WiFi	802.11 a/b/g/n/ac/ax (M.2 NVME)
  Bluetooth	5.3
  Operating system	Windows 11 loT Enterprise (SAC) 64Bit
  Signal output	USB-C x2 (DP 1.4 Alt mode, 4K @60Hz), HDMI x1 (2.0, 4K @60Hz)
  USB A	x4 (v.3.2 Gen1, 5Gbit)
  USB-C	x2 (v.3.2 Gen1, 5Gbit)
  Headset connector	(Audio & microphone)
  LAN	x1 (RJ45)
  Power usage	72W typical, 0.5W stand by
  Product dimensions (L x W x H)	195 x 110 x 25mm
  Weight (without box)	0.4kg
  Weight (with box)	0.61kg
  EAN code	4948570033348
  Operation temperature range	minus 5°C – 45°C
  Operation humidity	5% – 95%
  Storage temperature range	– 20°C – 60°C
  Storage humidity	5% – 95%

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.
  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
  * Proof of purchase may be required
