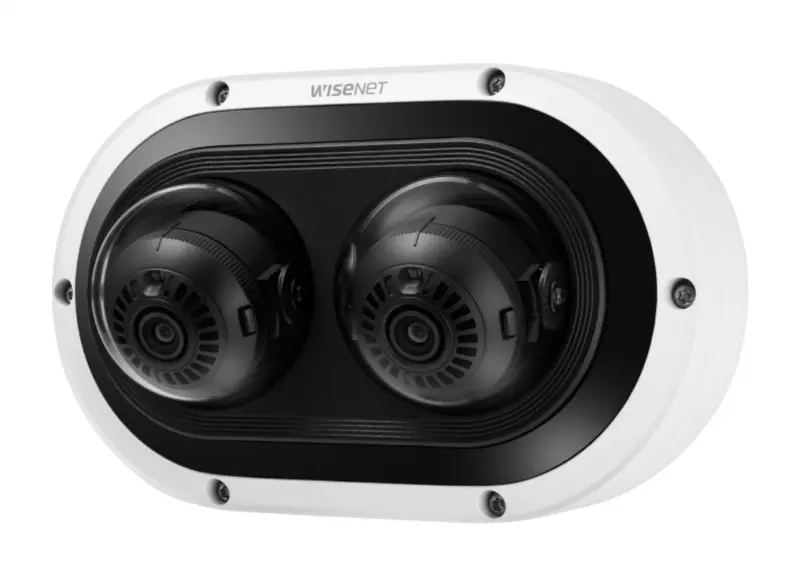

• Hanwha 2MP x 2 AI IR Multi-directional Dome | PNM-C7083RVD



  The PNM-C7083RVD is an outdoor vandal-rated network camera featuring 2 Channels, with AI & IR in a dome camera form factor. Featuring 2MP X 2 sensors, each at 30fps with a 3~6mm (2x) (107°~56.3°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation
  Day & Night (ICR)
  extremeWDR (120dB)
  DIS, & Handover
  Analytics events based on AI engine: Object detection(Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events : Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Appear/Disappear
  FIPS 140-2 compliant
  micro SD card slot supoorts uo to 512GB
  IP66, NEMA4X, IK10
  Operating temperature: -40°C~+55°C(-40°F ~ +131°F)
  Power: PoE+
  Metal shielded RJ-45, Hard-coated dome bubble

• Category	Feature
  Video
  Imaging Device	1/2.8″ CMOS x 2CH
  Resolution	1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
  Max. Framerate	H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  Min. Illumination	Color: 0.035lux(F2.2, 1/30sec, 30IRE) BW: 0.0035lux(F2.2, 1/30sec, 30IRE), 0lux(IR LED on)
  Video Out	USB: micro USB Type B, 1280×720 for installation
  Lens
  Focal Length (Zoom Ratio)	3~6mm(2x) motorized varifocal per CH
  Max. Aperture Ratio	F2.2(Wide)~F3.1(Tele)
  Angular Field of View	H: 107˚(Wide)~56.3˚(Tele) V: 57˚(Wide)~31.5˚(Tele) D: 126˚(Wide)~64.3˚(Tele)
  Min. Object Distance	0.5m(1.64ft)
  Focus Control	Simple focus
  Lens Type	Fixed IRIS
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range	0355°/078°/0~180°
  Operational
  Camera Title	Displayed up to 85 characters
  Day & Night	Auto(ICR)
  Backlight Compensation	BLC, WDR, SSDR
  Wide Dynamic Range	extremeWDR(120dB)
  Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
  Motion Detection	8ea, 8point Polygonal zones
  Privacy Masking	6ea, Quadrangle zones – Color : Gray, Black, White
  Gain Control	Support
  White Balance	ATW / AWC / Manual / Indoor / Outdoor
  LDC	Support
  Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control(Based on AI engine)
  Video Rotation	Flip, Mirror, Hallway view (90°/270°) – Each channel separately
  Analytics
  Classified object type	Person/Face/Vehicle/License plate Attributes : Vehicle(Type /bus/truck/motorcycle/bicycle) Support Bestshot
  Analytics events based on AI engine	Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
  Analytics events*	Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) * Support Audio detection, Sound classification via optional SPM-4210 I/O box
  Alarm I/O	* Support Alarm via optional SPM-4210 I/O box
  Alarm Triggers	Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
  Alarm Events	When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – * Alarm output via optional SPM-4210 I/O box
  Audio In	* Audio in via optional SPM-4210 I/O box
  Audio Out	* Audio out via optional SPM-4210 I/O box
  IR Viewable Length	25m(82ft)
  Network
  Ethernet	Metal shielded RJ-45 (10/100/1000BASE-T)
  Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
  Smart Codec	Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
  Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming	Unicast(10 users) / Multicast 5 profiles per channel
  Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
  Security
  TPM 2.0 (FIPS 140-2 level 2)	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery
  Application Programming Interface	ONVIF Profile S/T SUNAPI(HTTP API) Open platform
  General
  Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
  Edge Storage	Micro SD/SDHC/SDXC 1slot Max. 512GB
  Memory	2GB RAM, 512MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity	-40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
  Storage Temperature / Humidity	-50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
  Certification	IP66, IK10, NEMA4X
  Input Voltage	PoE+(IEEE802.3at, Class4)
  Power Consumption	PoE+: Max 20W, typical 15.5W
  Mechanical
  Color / Material	White / Aluminum Hard-coated dome bubble
  RAL Code	RAL9003
  Product Dimensions / Weight	215(W)x135(D)x93.2(H)mm(8.46″x5.31″x3.67″) / 1330g
  Compatible Conduit hole / Gangbox	3/4″ (M25) single, double, 4″ octagon, 4″ square
  DORI (EN62676-4 standard)
  Detect (25PPM/ 8PPF)	Wide: 28.4m(93.22ft) / Tele: 71.8m(235.45ft)
  Observe (63PPM/ 19PPF)	Wide: 11.4m(37.29ft) / Tele: 28.7m(94.18ft)
  Recognize (125PPM/ 38PPF)	Wide: 5.7m(18.64ft) / Tele: 14.4m(47.09ft)
  Identify (250PPM/ 76PPF)	Wide: 2.8m(9.32ft) / Tele: 7.2m(23.55ft)
