• Crestron Flex Pod Wireless Audio Kit with Hub and Pod, Black | UC-AUDIO-1-B-DR2 KIT

  The Crestron Flex UC-AUDIO-1-B KIT is a wireless conferencing system that provides a small to large room audio conference solution. The kit includes a Crestron Flex UC-AUDIO-POD and UC-AUDIO-HUB. The system can be expanded to support up to four pods, delivering a high-quality audio experience when connected to the hub through the Digital Enhanced Cordless Telecommunications (DECT™) technology.

  High-Quality Audio
  The pod delivers intelligible and high-quality audio across every corner of a room. It contains four auto-mixed directional mics that provide 360-degree pickup, high-quality echo cancellation, automatic gain compensation, and noise reduction.

  Wireless Connectivity

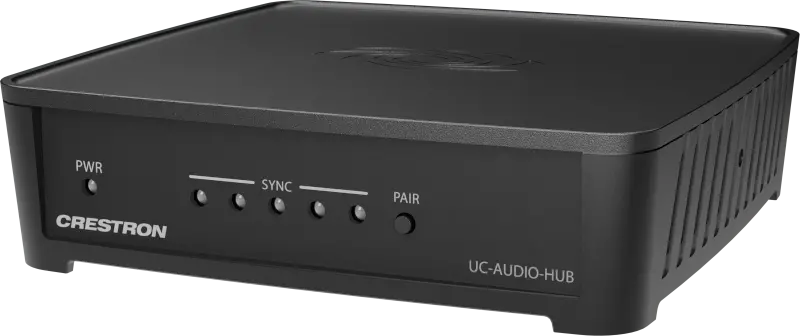

  The hub wirelessly connects with and distributes audio to up to four paired pods, enabling the pods to be placed anywhere within a room. This allows the hub and the pods to be deployed in large conference rooms and multi-purpose meeting spaces. Audio level consistency is realized as volume levels are synchronized across all the pods.




  Outstanding Adaptability
  The pod is scalable across a variety of room types, including unconventionally shaped ones and those with challenging designs. In an open architecture design or where walls and ceilings cannot be opened to wires, the pod provides an audio solution ensuring that neither room aesthetics nor optimal audio are compromised. The pod, when connected with the hub, can easily be moved if furniture changes, and additional pods can be added if the room expands. Pods can be deployed in spaces with video conferencing hosted by personal devices to enable productive hybrid meetings with high-quality audio.

  Robust Security
  The pod delivers audio over long distances, making it optimal for larger spaces. The DECT technology ensures that only paired pods transmit audio from the intended hub. The pod provides safe and secure audio transmission leveraging DECT technology. DECT uses multiple levels of security and does not interfere with other wireless technologies, such as Wi-Fi® and Bluetooth®.

  Easy Device Management
  The configuration and connection status of the system can be monitored through a simple web user interface with no prior setup. Deploying the pods and the hub across multiple room types, firmware updates, monitoring, and management can be controlled using the XiO Cloud® service.

  Key Features
  A wireless audio conference solution including a Crestron Flex Pod and Hub

  Wireless connectivity enables placement of the pod anywhere on a conference table

  Convenient in-call volume and mic mute controls

  Speaker volume indicator and LED indicator ring display the operational status

  Optional tabletop mounting accessory and Kensington® lock support

  Built-in AEC and noise reduction affords exceptional full-duplex audio performance with
  highly intelligible, echo-free two-way voice quality

  Up to four pods connect wirelessly to the hub which sends and receives audio to a UC Engine through a USB-C® connection

  DECT™ technology ensures minimal interference and robust security

• Category	UC-AUDIO-POD	UC-AUDIO-HUB
  Driver	One full range 2 in. speaker	N/A
  Frequency Response	100 Hz to 7 kHz	N/A
  Effective Output Level	74 dB SPL at 1 m	N/A
  Microphones	360° quad mic array, 7.5 ft (2.3 m) pickup range	N/A
  Audio DSP	Acoustic echo cancellation, automatic gain control, dynamic noise suppression, full-duplex IEEE 1329 Type 1	N/A
  Wireless Communication	DR1: 1920–1930 MHz (US/Canada), DR2: 1880–1900 MHz (Europe/Australia/NZ), DR3: 1894–1906 MHz (Japan), DR4: 1790–1800 MHz (Korea), DR5: 1880–1895 MHz (Taiwan); Range: 50 ft (15 m)	DR1–DR5 frequency bands (same as pod); Range: 50 ft (15 m)
  Indicators	Green LED (unmuted), Red LED (muted), White LED (volume level)	Power LED (Green/Amber), SYNC LEDs (5) for pairing/connection
  Buttons	Volume up/down (capacitive, backlit), Mic mute (capacitive, backlit), Pair, Reset	Pair (push button), Reset (recessed push button)
  USB-C Power	5VDC, 3A via external 100-240VAC power pack (included)	USB-C for Audio and HID data
  24VDC Power	N/A	24VDC, 0.75A via external 100-240VAC power pack (included)
  LAN Power over Ethernet	N/A	1000 Mbps Ethernet, PoE PD 4W, Class 0
  Security Port	Kensington Security Slot™ port	N/A
  External Antenna	N/A	Input Impedance: 50 Ω, Connector Type: SMA-RP
  Environmental	Temperature: 41° to 104° F (5° to 40° C), Humidity: 10% to 95% RH (non-condensing), Heat Dissipation: 12 BTU/hr	Temperature: 41° to 104° F (5° to 40° C), Humidity: 10% to 95% RH, Heat Dissipation: 12.3 BTU/hr
  Enclosure	Plastic housing, stainless steel grilles, die-cast aluminium bottom cover	Textured black plastic housing
  Mounting	Tabletop mounting only	Freestanding, stackable, surface mount, or wall/ceiling mount (bracket included)
  Dimensions	Height: 3.0 in. (76 mm), Width: 4.40 in. (112 mm), Depth: 4.40 in. (112 mm)	Height: 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket; Width: 5.04 in. (128 mm), Depth: 5.04 in. (128 mm)
  Weight	1.6 lb (726 g)	8.9 oz (253 g) without bracket
