• Crestron Tabletop Mounting Kit for Crestron Flex Pod Wireless Speaker and Microphone | UC-AUDIO-POD-TTMK

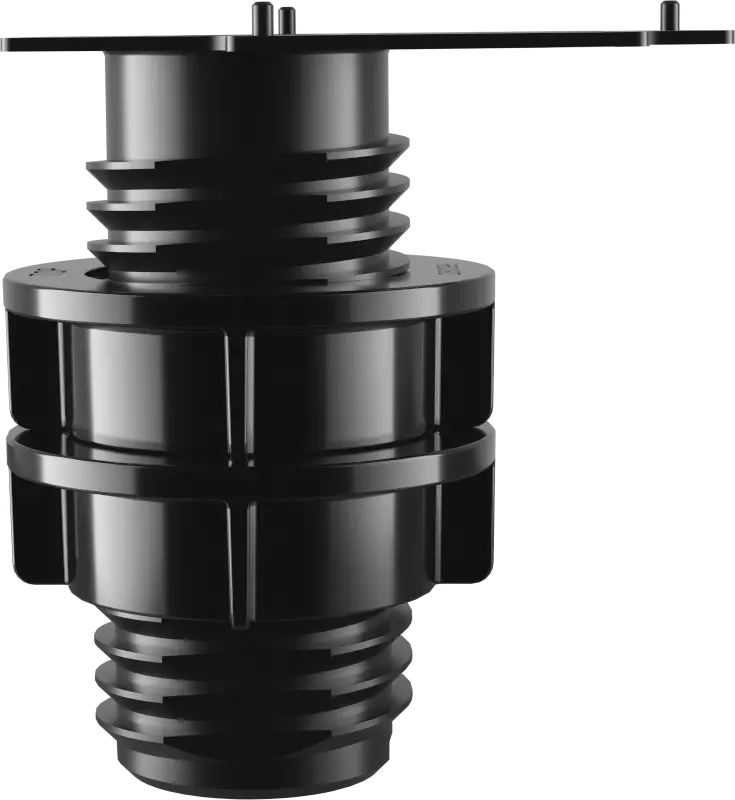

  The UC-AUDIO-POD-TTMK is an optional tabletop mounting kit for the Crestron Flex UC-AUDIO-POD. The easy-to-install kit includes a plastic flange, threaded tube and two nuts to mount the pod on a table. An adhesive strip is attached to the bottom of the flange to prevent the pod from rotating on the table.



  The mounting kit can be installed on any flat level surface with a minimum thickness of 3/4 in. (19 mm) to the maximum thickness of 1.50 in. (38 mm). Cables are routed through the center of the threaded tube, passing beneath the mounting surface for a completely hidden appearance.

• Category	Specification
  Material	Plastic flange and threaded tube
  Mounting	Installs into 1.50 in. (38 mm) standard hole on table;
  	3/4 in. (19 mm) minimum surface thickness;
  	1.50 in. (38 mm) maximum surface thickness
  Height	3.35 in. (85 mm)
  Width	3.10 in. (79 mm)
  Depth	3.05 in. (78 mm)

• Description	Downloads
  Cad Drawing	Downloads
  Spec Sheet	Downloads
