• Cloud MA80 Mini Mixer Amplifier | 80W Mono 4Ω | Mic & Line Inputs | Compact Design

  The MA80 is a compact Mini Amplifier providing 80W Mono Output at 4Ω (low impedance). Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an “install and forget” component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.

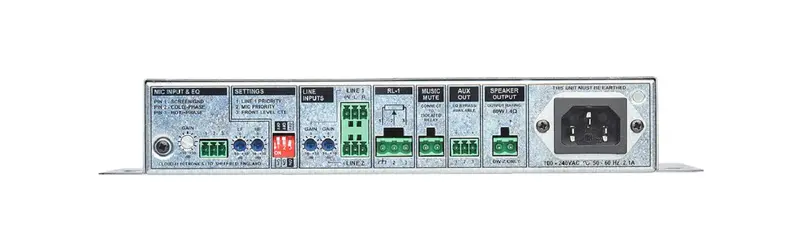

  Fitted with a Microphone Input with EQ and input gain adjustment, a further two line inputs, an RL-1 remote wall plate connection, music mute connection and dip switch settings providing Line 1 priority and mic priority switching in addition to switching on/off of the RL-1 functionality.
  • 1 x 80W Mono 4ohm Output (<1% THD @ Full Output)
  • Line 1 over Line 2 Priority
  • APD – Auto Wake & Hibernation
  • Mic Input with EQ and Input Gain
  • Music EQ Plus Optional EQ Card
  • Mic Output Level Control + Priority
  • Music Mute
  • RL-1 Remote Control Interface
  • Aux Out
  • Dynamic Clip, Thermal & Short Protection
  • Integrated Universal Power Supply
  • Variants: EK, AUS, NA

• Category	Specification
  Line Inputs – Frequency Response	±1 dB, 20 Hz – 20 kHz
  Line Inputs – THD+N	<0.05% (1 kHz, full power, 22 kHz bandwidth)
  Line Inputs – Sensitivity	-12 dBu (195 mV) to +8 dBu (2.0 V)
  Line Inputs – Gain Control	20 dB range
  Line Inputs – Impedance	47 kΩ
  Line Inputs – Headroom	16 dB
  Line Inputs – Noise	<-95 dB
  Line Inputs – EQ	LF: ±10 dB @ 50 Hz HF: ±10 dB @ 10 kHz
  Mic Input – Frequency Response	-3 dB @ 100 Hz (filter) to 20 kHz ±1 dB
  Mic Input – THD+N	<0.05% (1 kHz, full power, 22 kHz bandwidth)
  Mic Input – Gain	10 dB to 50 dB
  Mic Input – Impedance	2.7 kΩ (balanced)
  Mic Input – Headroom	16 dB
  Mic Input – Noise	EIN: -127 dB (22 kHz bandwidth, Rs=150Ω)
  Mic Input – Phantom Power	+12 V (internal jumper)
  Mic Input – EQ	LF: ±12 dB @ 100 Hz HF: ±12 dB @ 5 kHz
  Main Output Power	80 W into 4Ω (1 kHz continuous sine wave)
  High Pass Filter	-3 dB @ 65 Hz (selectable by internal jumper)
  Aux Output Max Level	0 dBu (0.775 Vrms)
  Power Supply	Universal, 100–240 V, 50–60 Hz
  Power Consumption	Standby: 0.88 W / 7.35 VA Idle: 5.41 W / 13.39 VA 1/8th Power (4Ω): 17.4 W / 31.75 VA 1/3rd Power (4Ω): 30.4 W / 50.58 VA
  Heat Loss	Standby: 3.2 kJ/hr (3.0 BTU/hr) Idle: 19.5 kJ/hr (18.5 BTU/hr) 1/8th Power: 26.3 kJ/hr (24.9 BTU/hr) 1/3rd Power: 27.0 kJ/hr (25.6 BTU/hr)
  Amplifier Protection	Fixed limiter, protection against DC, PSU/amp overcurrent, over-temp. Resettable internal breaker (no fuses).
  Cooling	Natural convection
  Dimensions (Net)	260 × 41 × 180 mm (10.24” × 1.61” × 7.09”)
  Dimensions (Shipping)	400 × 145 × 255 mm (15.75” × 5.71” × 10.0”)
  Weight (Net)	1.35 kg
  Weight (Shipping)	2.05 kg

• Description	Downloads
  Cloud Electronics MA80 80W Mini Mixer Amplifier | MA80EK DataSheet	Download
