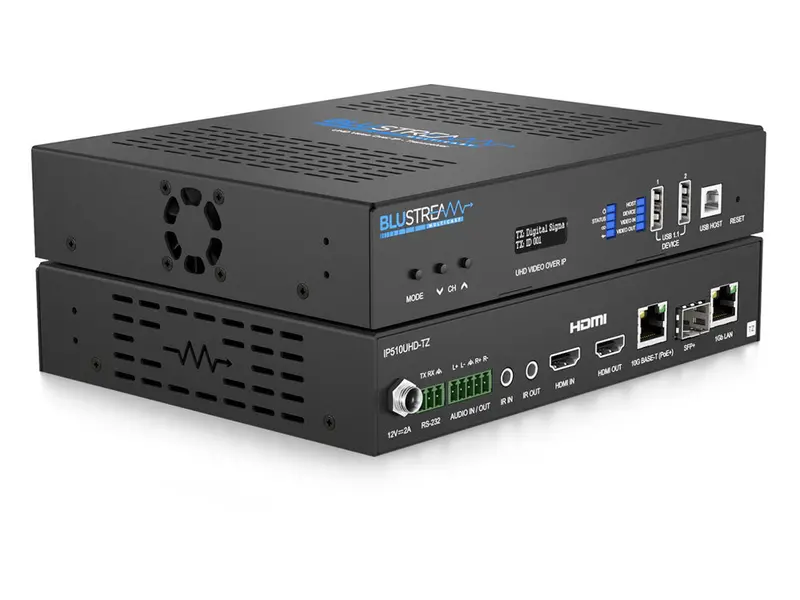

• BluStream 4K 60Hz 4:4:4 SDVoE Simultaneous Transceiver Over 10Gb Managed Network




  The Blustream IP510UHD Simultaneous Transceiver is an SDVoE compliant AV over IP solution that provides the highest-quality, uncompromised 4K, with zero latency audio/video extension over copper or optical fibre 10G network. The IP510UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10/12-bit colour content, and multi-channel HD audio signals.
  The IP510UHD-TZ provides advanced features including PoE+ and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB 1.1 (KVM) and 1Gb Ethernet.
  The IP510UHD-TZ is ideal for 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer, or video wall system.



  Features
  Advanced 18Gbps UHD Video over 10Gb network with visually lossless compression, and zero latency
  Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources,
  including Dolby Vision
  Supports video scaling and seamless switching
  Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD
  Master Audio transmission
  Features 4 operational modes:
  Matrix distribution (requires 10Gb network switch)
  Video Wall (requires 10Gb network switch)
  Multiview mode (requires 10Gb network switch)
  One-to-one HDMI extender (no network switch required)
  Supports fixed signal routing function for IR, RS-232, CEC and USB
  USB 1.1 end to end/point to point pass-through for KVM
  Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
  Bi-directional 10/100/1000BaseT Ethernet pass-through
  Supports bi-directional 5V or 12V IR pass-through
  PoE (Power over Ethernet) to power Blustream products from PoE+ switch
  HDCP 2.2 compliant with advanced EDID management
  Local 12V 2A power supply (should Ethernet switch not support PoE+)

• Specification	Details
  Video Input	1 x HDMI Type A, female
  Video Output	1 x HDMI Type A, female
  Audio Input/Output	1 x 5-pin Phoenix connector
  Ethernet Port	1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through
  RS-232 Serial Port	1 x 3-pin Phoenix connector
  USB/KVM Port	1 x USB-Type B (host), 2 x USB-Type A (device)
  IR Input	1 x 3.5mm stereo jack
  IR Output	1 x 3.5mm mono jack
  Dimensions (W x D x H)	195mm x 153mm x 37mm
  Dimensions with Connections (W x D x H)	191mm x 160mm x 37mm, without feet
  Shipping Weight (Kit)	1.05kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Operating Altitude	< 2,000m

• Description	Downloads
  BluStream 4K 60Hz 4:4:4 SDVoE Simultaneous Transceiver Over 10Gb Managed Network | IP510UHD-TZ DataSheet	Downloads
