• BluStream Advanced IP Multicast Control Module for IP500 Series SDVoE Video Over IP




  Our UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.

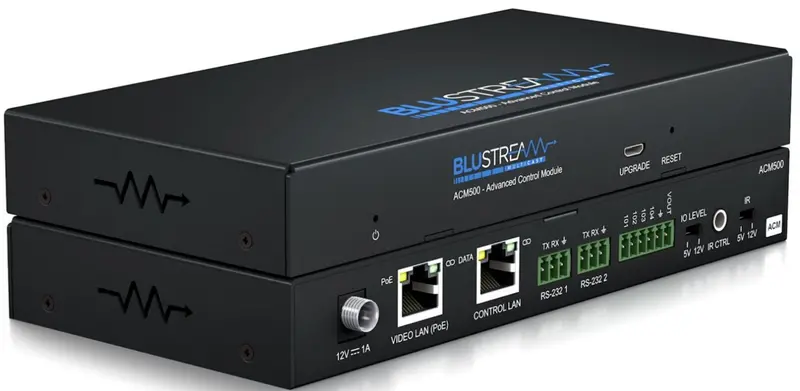

  The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web interface module for control and configuration of the Multicast system and features ‘drag & drop’ source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.
  Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.



  Key Features
  Web interface module for configuration and control of Blustream IP500UHD and IP510UHD SDVoE 10GbE Multicast systems
  Intuitive ‘drag & drop’ source selection with video preview feature for active monitoring of system status
  Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
  Auto system configuration
  2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
  – Better system performance as network traffic is separated
  – No advanced network setup required
  – Independent IP address per LAN connection
  – Allows simplified TCP/IP control of Multicast system
  Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices
  5V/12V IR integration for control of Multicast system
  PoE (Power over Ethernet) to power Blustream product from PoE switch
  Local 12V power supply (optional) should Ethernet switch not support PoE
  Support for iOS and Android App control
  3rd Party drivers available for all major control brands
  Box Contents
  1 x ACM500
  1 x IR Control Cable – 3.5mm to 3.5mm Cable
  4 x Rubber Feet
  1 x Mounting Kit

• Specification	Details
  Ethernet Port	2 x 1Gb LAN RJ45 (1x PoE support)
  RS-232 Serial Port	2 x 3-Pin Phoenix connector
  I/O Port	1 x 6-Pin Phoenix connector
  IR Input Ports	1 x 3.5mm stereo jack
  PoE Draw	7.9W (typical), 8.4W (max load)
  Product Upgrade	1 x Micro USB, female
  Dimensions (W x D x H)	190.4mm x 93mm x 25mm
  Shipping Weight (Kit)	0.6kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	PoE or 12V/1A DC

• Description	Downloads
  BluStream Advanced IP Multicast Control Module for IP500 Series SDVoE Video Over IP Downloads, Drivers and Firmware	Downloads
