Birddog Bd4Kquad Quad Sdi To Ndi Converter With Encoding & Decoding

Description

• Description
• Specifications

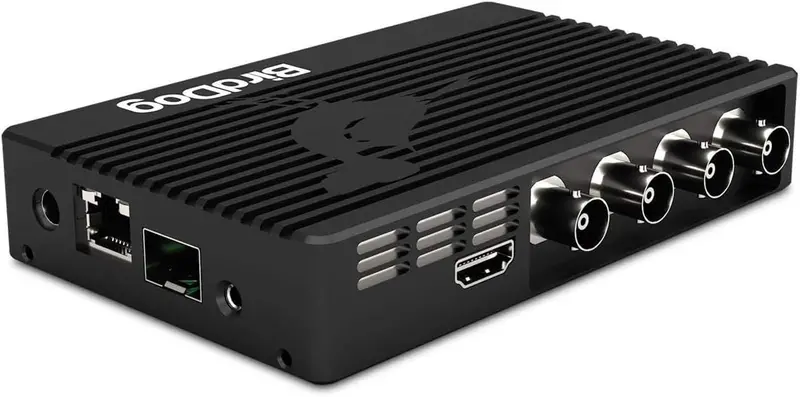

• BirdDog 4K Quad SDI to NDI Encoder/Decoder




  New to the range
  BirdDog made bringing NDI into a studio incredibly easy. The Mini and Studio have seen multiple updates and over a gigabit Ethernet connection, you can now send or receive video signals for use in any regular studio application, digital signage and more. But with the world moving to making 4K video the standard and some people now working entirely within that type of workflow, BirdDog have come up with a solution.
   What is NDI?
  Network Device Interface is an royalty free technology developed NewTek to adapt a network into transferring video signals over it to a destination. NDI is now the industry standard for network based video production and in the future, might begin to replace SDI and HDMI as the current hardware standard for cabl

• Specification	Details
  Supported Video Format	UHD 3840×2160: 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00; HD 1920x1080p: 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00; HD 1920x1080i: 50.00i, 59.94i; HD 1280x720p: 50.00p, 59.94p, 60.00p
  Video I/O Connectivity	HDMI 2.0 Output: Yes; 12G SDI Input: Yes; 12G SDI Output: Yes
  Audio Input	SDI: 2Ch, 48kHz; 3.5mm AUDIO: Microphone/line input
  Audio Output	HDMI: 2Ch, 48kHz; SDI: 2Ch, 48kHz; 3.5mm AUDIO: Stereo Headphone/line output
  Video Processing	Downconvert NDI output: 4K -> 1080p, 1080p -> 720p
  Video Codec Support	Yes
  Display	Integrated 4-line OLED Status Display: Yes
  Tally	Onboard Bi-color Tally indicator: Yes; Selectable Tally indicator on video loop outputs: Yes
  Network Connectivity	Ethernet RJ45 1000baseT with PoE: Yes; Open SFP+ Cage: Yes; Embedded Web configuration Panel: Yes
  Weights & Dimensions	Size: 135x85x25mm; Weight: 260g
  Power	DC Input: DC 12v / 16w; PoE (Power over Ethernet): PoE+ 802.3at
  External Interface Support	USB to RJ45 for additional network support, USB to RJ45 for VISCA over IP PTZ control, USB to Serial PTZ control (RS232), USB ISO recording (optional cables required)
