B-Tech Bt899-Fd150/Bb Fixed Ceiling Mount For Projectors With Micro-Adjustment (1.5M Pole)

Description

• Description
• Specifications
• Downloads

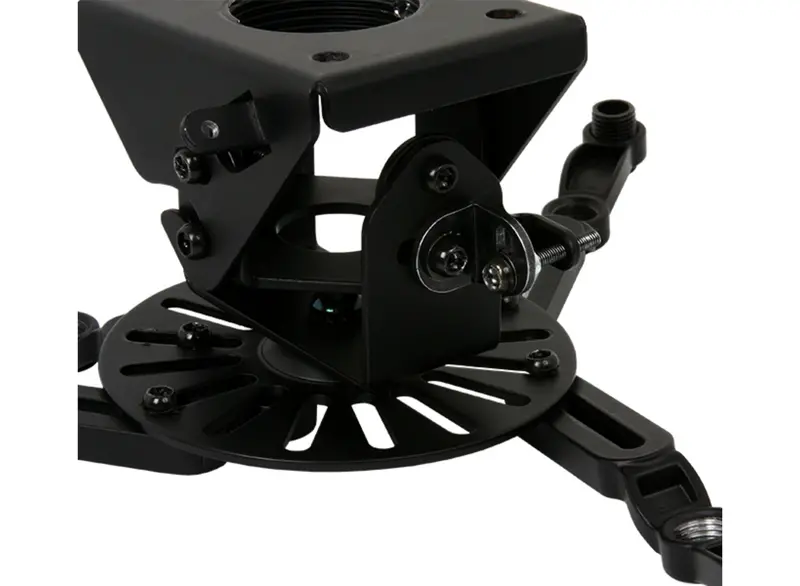

• Universal ceiling projector mount with adjustable tilt and rotation

  The BT899-FD is a ceiling mounted, universal projector mount designed to mount projectors up to 25kg. Suitable for use with angled ceilings, the BT899-FD features easy adjustment of tilt, yaw & roll plus optional micro-adjustment makes alignment of projections quick & simple. Available in a range of pole lengths to suit your requirements.


  Features
  Integrated cable management for smart installation
  Adjustable ceiling plate suitable for angled ceilings
  Security locking screws & Allen key provided for a secure installation
  Pole is internally unobstructed for cables to pass through easily
  Unique ‘Carousel’ mounting plate for universal compatibility
  Optional micro-adjustment ideal for use with short throw projectors
  Suitable for projectors using M2.5, M3, M4, M5 & M6 fixings
  Quick & easy assembly
  All mounting hardware included

• Maximum load	25kg (55lbs)	Tilt (pitch)	+/-13°
  Roll	+/-6°	Yaw	360°
  Ceiling plate tilt	90°	Maximum distance between fixings	370mm (14.62)
  Pole length options	BT899-FD050: 0.50m (19.7″) Pole BT899-FD100: 1m (39.4″) Pole BT899-FD150: 1.5m (59″) Pole BT899-FD200: 2m (78.7″) Pole BT899-FD300: 3m (118.1″) Pole	Colour options	Black

• Description	Downloads
  Specification Sheets	Download
  Technical Drawings	Download
