Aoc U32U3Cv 31.5-Inch 4K Ultra Hd Desktop Monitor — 60Hz, 4Ms

Description

• Description
• Specifications
• Downloads

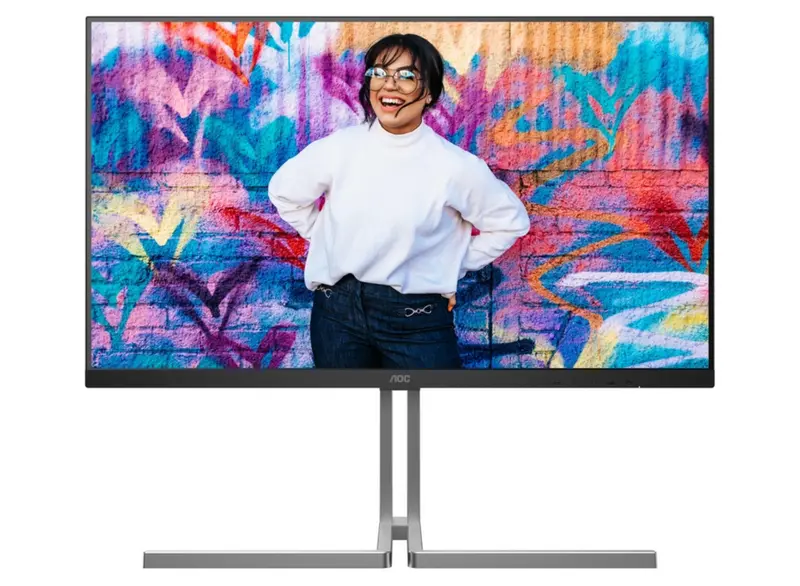

• Professional 4K Colour-Accurate Monitor for Designers

  The AOC Graphic Pro U32U3CV delivers outstanding color accuracy right out of the box, courtesy of its hardware calibration achieving Delta E<2 (sRGB). Easily adjust settings for peak performance with the Calman Ready feature. With a remarkable 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it’s tailor-made for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering that exceeds human eye perception. Enhanced with a UHD Nano IPS display, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands out as the ultimate choice for professionals.


  Delta E<2
  Delta E <2 color accuracy means superior, accurate color reproduction, achieving better than the eye can see color difference.


  Calman Ready
  Calman Ready displays and devices are equipped with the ability to communicate directly with Portrait Displays’ Calman® color calibration software. Devices that are Calman Ready can quickly connect with the software and leverage its precise and automated calibration capabilities (AutoCal™).  Calman Ready allows for easy, precise and quick calibrations with your brand-new AOC display.


  UHD (4K) Resolution
  With a 4K UHD resolution of 3840 x 2160 pixels – four times the resolution of a Full HD display – the monitor boasts a pixel density that delivers brilliantly sharp images with the finest details.


  Nano IPS
  Nano IPS technology involves nanoparticles which are applied to a LED backlight of an IPS-panel display. These particles absorb excessive light wavelenghts in order to increase color gamut of a display.


  Vesa Certified DisplayHDR™ 400
  Even the lowest level of High Dynamic Range (HDR) feature poses a significant upgrade to common monitors. The peak luminance of 400 cd/m² enables your display to hone the picture quality with a manifold colour spectrum and more diverse contrast. The VESA-certificate ensures richness of detail and realistic portrayals of game and film worlds.


  98% DCI-P3
  The AOC Graphic Pro line offers 98% DCI-P3, 100% sRGB, and 100% Rec. 709 coverage—perfect for creators demanding true-to-life colors and exceptional accuracy in every project.


  USB-C
  Simplify the connections with one cable only. The USB-C connection provides DisplayPort Alternate Mode for transferring high-resolution video signals from a notebook to the monitor while simultaneously charging the notebook’s battery from the monitor with USB power delivery. Additionally, the USB 3.1 ensures lightning-fast data transmission, so even transferring a 4K movie can be done in less than one minute.


  Red Dot Winner 2023
  The AOC U3 Graphic Pro Monitor won the category of product design. The Red Dot Award is among the most valued international competitions for product design, communication design, and design concepts.

• Model Name	U32U3CV	Brand	AOC
  Channel	B2B	Product line	Ultra-line
  Design family	U3	Launch date (ETA)	4/15/2024
  EAN	4038986112086	Screen size (inch)	31.5
  Screen size (cm)	80.0	Flat / Curved	Flat
  Curvature Radius	Flat	Display hardness	3H
  Panel treatment	Antiglare (AG)	Pixel Pitch (mm)	0.18159
  Pixels per Inch	140.0	Panel resolution	3840×2160
  Aspect ratio	16:9	Panel type	Nano IPS
  Backlight type	WLED	Max Refresh rate	60 Hz
  Response time GtG	4 ms	Static contrast ratio	1000:1
  Dynamic contrast ratio	50M:1	Viewing angle (CR10)	178/178
  Display colours	1.073B (8bits+FRC)	Brightness in nits HDR	400 nits
  Local Dimming Zones	Local Dimming	Sync technology (VRR)	Adaptive Sync
  Digital Signal Frequency Vertical	23-75Hz	Digital Signal Frequency Horizontal	30K-140KHz
  HDR	VESA Certified DisplayHDR™ 400	Blue Light Technology	Anti Blue Light
  Multiview (PbP, PiP)	PiP+PbP	Colour space (sRGB) CIE 1931 %	135.3%
  Flicker-Free	Flicker Free	KVM	Yes
  Bezel Colour (front)	Black, Silver	Cabinet colour (backside)	Black
  Cabinet finishing (backside)	Texture	Speaker power	3 W x 2
  Kensington Lock	Yes	Vesa wallmount	100×100
  Tilt	-6.5° ~ 23°	Height adjust (mm)	150mm
  Swivel	-15° ~15°	Pivot	-90° ~ 90°
  TCO Certified	Yes	Energy star	Energy star 8
  EPEAT	Gold	ECMA Eco declaration	Yes
  Product carbon footprint (PCF)	Yes	WEEE	Yes
  REACH compliant	Yes	RoHs compliant	Yes
  HF	Yes	PVC/BFR free housing	Yes
  Mercury free	Yes	Recycable packaging material	100% recyclable
  Recycled packaging material	>80% recycled carton	Post-consumer recycled plastic	85%
  Halogen free	Yes	Carton material	Paper
  Carton material print	Water Print (Brown Carton)	Power supply	Internal
  Power consumption on	30.37W	Power consumption standby	0.3W
  Power consumption off	0.3W	Energy class	F
  CB	Yes	CE	Yes
  TUV-GS-Mark	Yes	EAC	Yes
  FCC	Yes	Microsoft WHQL	Yes
  Pixel policy	ISO 9241-307	UKCA	Yes
  HDMI	HDMI 2.0 x 2	HDCP (HDMI version)	HDCP 2.2
  DisplayPort	DisplayPort 1.4 x 1	USB type downstream	USB-A x4, USB-C x1 (15W)
  USB fast charge port	Yes	Audio Output	1x Audio out
  DP HDCP version	HDCP 1.4/2.2	USB Type upstream	1x USB-C (DP Alt Mode, PD 96W)
  USB generation	USB 3.2 (Gen 2) 10 Gbit/s	RJ45	1x 10M/100M/1G
  Product dimensions incl. base (WxHxD) mm	714.4 x (459.3~609.3) x 258.6	Product dimensions excl. base (WxHxD) mm	714.4 x 422.3 x 52.5
  Packaging dimensions (WxHxD) mm	930 x 510 x 161	Gross weight incl. package (kg)	12.58
  Product with stand (kg)	8.46	Product without stand (kg)	6.34
  HDMI cable	1.8	Displayport cable	1.8
  USB-C to C/A cable	1.2	Power Cable	Yes
  Power cable C13	1.8	Warranty period	3 years

• Description	Downloads
  AOC U32U3CV 31.5″ 60Hz 4ms 4K Ultra HD Desktop Monitor Datasheet	Download
