• AKG P220 Large-Diaphragm Condenser Microphone | Warm, Clear Sound for Vocals & Instruments

  Professional projects

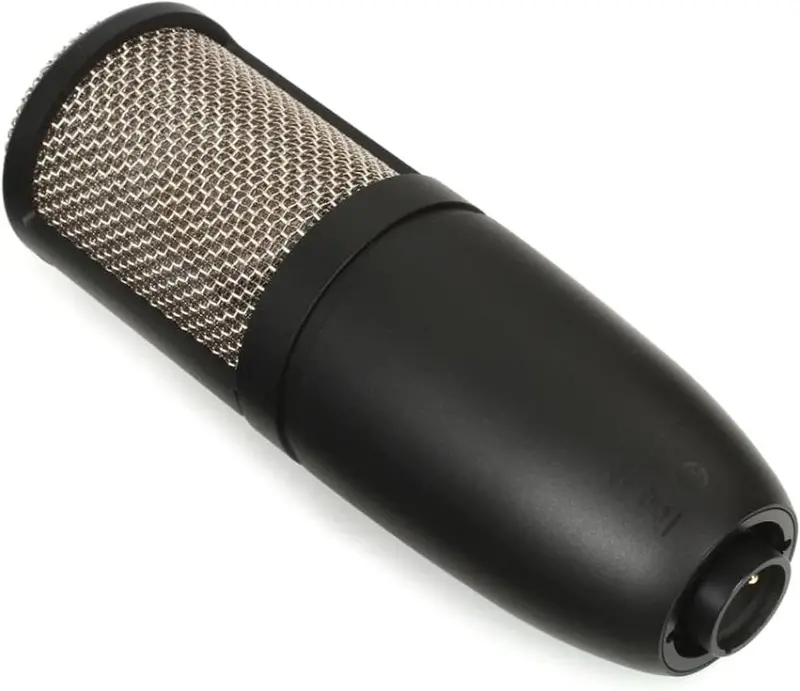

  The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications. The P220 represents the most popular and successful microphone within the actual Project Studio Line. It comes complete with a spider-type shock mount in an aluminum carrying case.



• Polar Pattern	Cardioid	Audio Frequency Bandwidth	20 – 20,000 Hz
  Equivalent Noise Level	16 dB-A	Sensitivity	20 mV/Pa
  Signal to Noise Ratio	78 dB-A	Preattenuation Pad	-20 dB
  Bass Cut Filter	300 Hz – 12 dB/octave	Electrical Impedance	≤ 200 Ohms
  Recommended Load Impedance	≥ 1000 Ohms	Length	165 mm
  Diameter	54 mm	Net Weight	514 g
  Audio Output Type	Balanced XLR	Output Gender	Male
  Contacts	3-pin	Powering Voltage	44 – 52 V
  Current	≤ 3 mA	Applications	Project Studio, Live Instrument, Vocals, Piano/Strings, Horns/Woodwinds
  Included Accessories	P220 Microphone, Spider Shock Mount, Metal Carrying Case

• Description	Downloads
  AKG P220 High-performance Large Diaphragm True Condenser Microphone | 3101H00420 DataSheet	Download
  AKG P220 High-performance Large Diaphragm True Condenser Microphone | 3101H00420 User Manual	Download
