• Adastra 100V Mixer Amplifier | 30W Class D | USB, Bluetooth 5.0 & FM Player | Compact PA System

  100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19″ rack space. Designed as a versatile solution for small to medium PA installations.
  Ultra compact form factor
  Efficient class D amplifier design
  Internal USB/FM/BT audio player
  100V line or 8 Ohms operation
  Bluetooth with programmable ID

• Feature	Description
  Weight	2.35kg

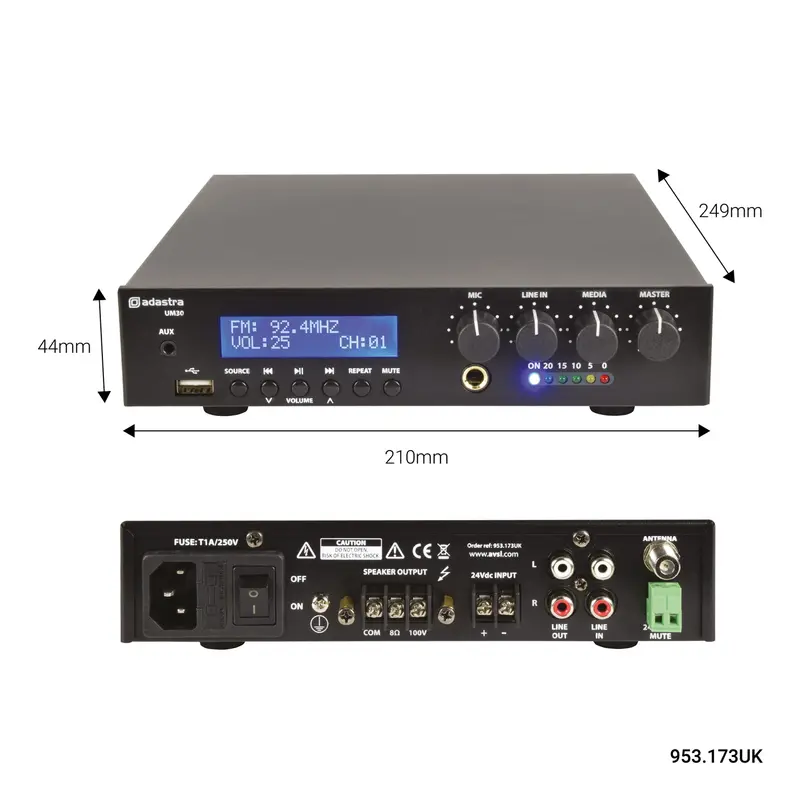

  Dimensions	249 x 210 x 44mm
  Alarm Output	N/A
  Output Power (RMS)	30W
  Power Supply	170-264Vac, 50Hz (IEC) or 24Vdc
  Amplifier Construction	Class D + transformer output
  Audio Source	Internal USB/FM/BT player
  Bluetooth Version	5.0
  Inputs	1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
  Line Output	2 x RCA (mono)
  Speaker Outputs	Screw terminals – 100V / 8Ω / Com
  DC Power	24Vdc screw terminals
  Mute	24V relay contacts
  THD	<0.4% @ 1kHz
  Input Impedance	1kΩ (mic/line)
  Input Sensitivity	-10dB (line), -45dB (mic)
  SNR	80dB (line), 75dB (mic)
  Frequency Response	100Hz – 18kHz
