Adastra A2 Stereo Pa Amplifier – 2 × 200W Class-D Amplifier For Distributed Audio Systems | 953.402Uk

Description

• Description
• Specifications

• Adastra 2x200W Stereo Amplifier with Mixer, Bluetooth, USB/SD MP3 & FM Radio | Class D PA System

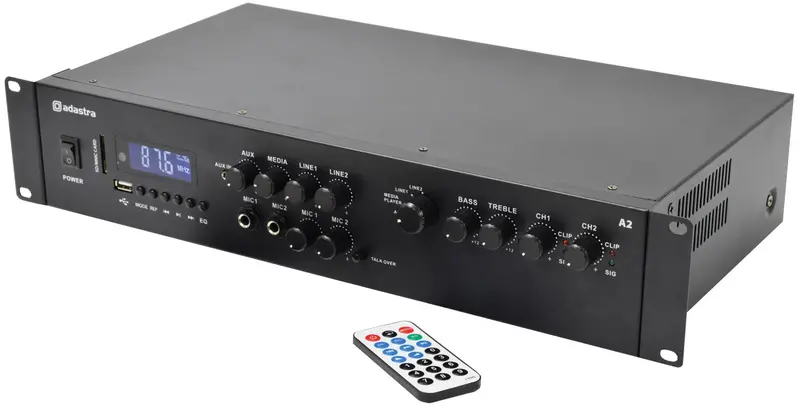

  Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W. Designed to offer installers a flexible solution for P.A. and music playback in bars, restaurants and function rooms.
  Media player with USB/SD playback
  FM radio tuner with external aerial connection
  Bluetooth receiver

• Feature	Description
  Power Supply	230Vac, 50Hz (IEC)
  Fuse	F5A, 250V
  Output Power RMS @ 4Ω	2 x 200W
  Output Power RMS @ 8Ω	2 x 100W
  Amplifier Construction	Class D
  Frequency Response	20Hz – 20kHz ±0.5dB
  Microphone Inputs	2 x 6.3mm jack (mono)
  Line Inputs	Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
  Input Sensitivity (Line)	0.775Vrms
  Auxiliary Input	3.5mm stereo jack
  Input Sensitivity (Aux)	0.480Vrms
  Input Impedance	20kΩ balanced, 10kΩ unbalanced
  Audio Source	USB/SD mp3 playback, FM tuner, BT receiver
  Bluetooth Version	2.3
  Input Controls	Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
  Line Output	2 x RCA
  Speaker Outputs	4mm binding posts (2 channels)
  Antenna Connection	F type (FM tuner)
  Output Controls	Source select, Bass, Treble, Ch1, Ch2
  Dynamic Range	92dB
  THD+N	<0.1%
  Protection	Thermal, over-current, over-voltage, short-circuit
  Dimensions	482 x 260 x 88mm
  Weight	5.21kg
